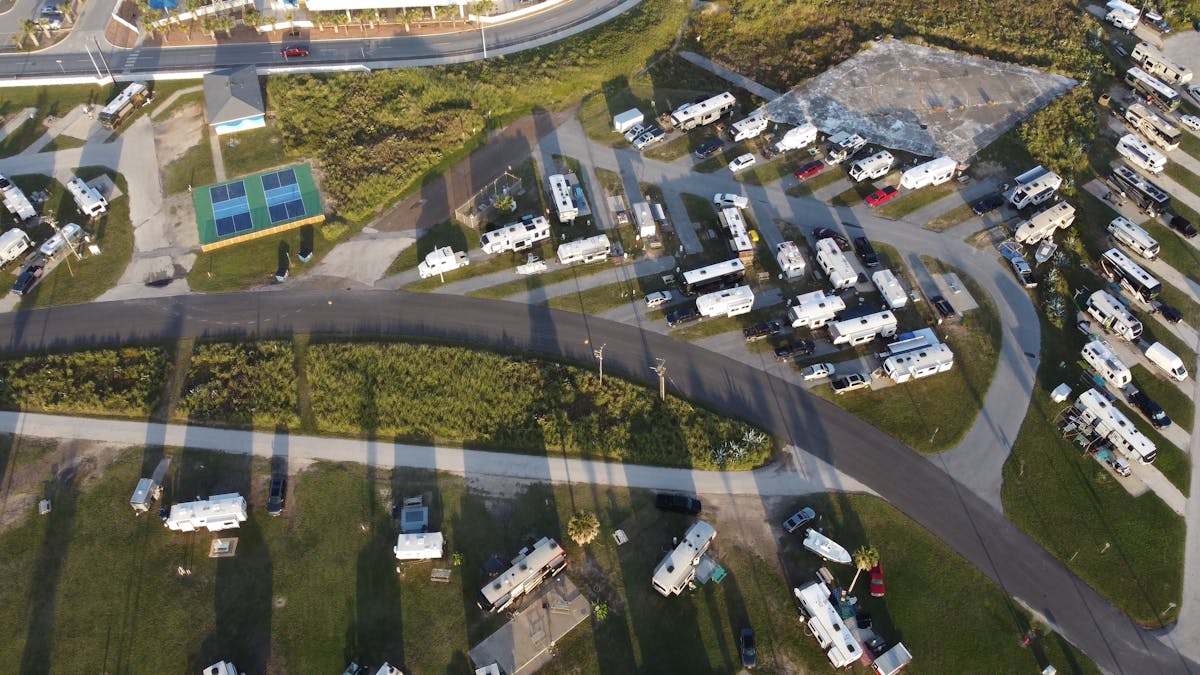

Aerial view of an RV campground with numerous RVs and trailers parked at hookup sites

RV Shore Power Explained: 30 Amp vs 50 Amp

Electrical & Power

You pull into your campsite, park, level up, and walk over to the power pedestal. There are two or three outlets staring back at you. One has three holes. Another has four. A smaller one looks like a household outlet. You’ve got a thick yellow cord in your hand and the AC isn’t going to run itself.

This is where most RVers learn about shore power — standing in front of a pedestal, hoping they grab the right plug. The good news is that it’s straightforward once you understand the basics. The bad news is that getting it wrong can trip breakers, damage appliances, or create a genuine safety hazard.

This guide covers the two main shore power service levels — 30-amp and 50-amp — including what each one can handle, how to use adapters between them, and how to protect your rig every time you plug in.

What Is Shore Power?

Shore power is the external AC electricity supplied to your RV through a campground’s power pedestal. When you plug in, your RV runs on the campground’s electrical grid instead of its own batteries or a generator.

A typical power pedestal offers three types of outlets:

  • 30-amp (NEMA TT-30R) — the standard for smaller travel trailers, pop-ups, and Class B/C motorhomes
  • 50-amp (NEMA 14-50R) — the standard for larger fifth wheels, Class A motorhomes, and rigs with multiple air conditioners
  • 20-amp (NEMA 5-20R) — a standard household outlet, useful for charging devices or running a single small appliance

Your RV’s shore power cord matches one of these outlets. Knowing which one you have — and what it can handle — determines what you can run and how safely you can do it.

30-Amp Service Explained

A 30-amp connection uses a NEMA TT-30 plug with three prongs: one 120-volt hot wire, one neutral wire, and one ground wire. It delivers a single 120-volt circuit.

Maximum power: 3,600 watts (30 amps × 120 volts).

That sounds like a lot until you start adding up what your appliances actually draw. Here’s the reality of life on 30 amps:

  • Your air conditioner alone pulls 1,200–2,000 watts while running — and can spike to 2,600+ watts on startup
  • Your microwave draws 1,000–1,500 watts
  • Your electric water heater pulls about 1,400 watts

Run the AC and the microwave at the same time and you’re looking at 2,700–3,500 watts — right at the edge of your 3,600-watt ceiling. Add the water heater kicking on in the background and you’ve tripped the breaker.

What You Can Realistically Run on 30 Amps

Think of 30-amp service as “one big thing at a time.” You can run:

  • AC + refrigerator + lights + TV — comfortably within limits
  • AC + electric water heater — tight, but usually fine if nothing else is drawing heavy power
  • Microwave + coffee maker (no AC) — about 17–20 amps combined, leaves room for lights and the fridge
  • Space heater + TV + lights — fine, but don’t add the microwave

What you can’t do: run the AC and the microwave simultaneously. Or the AC and a space heater. Or, frankly, any two high-draw appliances at the same time.

50-Amp Service Explained

A 50-amp connection uses a NEMA 14-50 plug with four prongs: two 120-volt hot wires, one neutral wire, and one ground wire. This is the key difference — 50-amp service provides two separate 120-volt circuits, not one.

Maximum power: 12,000 watts (2 legs × 50 amps × 120 volts).

With more than three times the power of a 30-amp connection, 50-amp service lets you run your rig like a house:

  • Two air conditioners running simultaneously
  • Microwave, washer/dryer, and entertainment system — all at the same time
  • Electric water heater running in the background without a second thought

Larger Class A motorhomes, fifth wheels, and toy haulers are typically wired for 50-amp service because they need it — multiple AC units, residential refrigerators, and full-size appliances demand the headroom.

Common RV Appliance Power Draw

Knowing what each appliance draws is the foundation of managing your shore power. Here’s a reference table for the most common RV loads:

ApplianceRunning WattsStartup WattsAmps (at 120V)
Air conditioner (13,500 BTU)1,3252,65011–22
Microwave (900W rated)1,500—12.5
Electric water heater (6 gal)1,400—12
Residential refrigerator400–1,2001,200–2,0003.5–10
Space heater1,000–1,500—8.5–12.5
Hair dryer1,000–1,500—8.5–12.5
Coffee maker900–1,200—7.5–10
Toaster800–1,500—7–12.5
TV100–400—1–3.5
LED lights (total)5–25—< 1

The three biggest power hogs — air conditioner, electric water heater, and microwave — are the ones that cause breaker trips on 30-amp service. On 50-amp service, they spread across both legs and rarely compete.

Using Adapters Between 30A and 50A

You won’t always find the outlet that matches your plug. That’s where adapters come in — RVers call them “dog bones” because of their shape.

50-Amp RV at a 30-Amp Site

Use a NEMA 14-50P to TT-30R adapter to step down. Your RV will only receive power on one of its two legs, limiting you to 3,600 watts total.

This means you’re effectively living on 30-amp power. Only one AC unit will work. You’ll need to manage loads the same way a 30-amp RV owner does — one big appliance at a time.

30-Amp RV at a 50-Amp Site

Use a NEMA TT-30P to 14-50R adapter to step up. Your RV still only draws 30 amps — the adapter just lets you physically connect to the 50-amp outlet. You don’t get more power; the RV’s wiring is the bottleneck.

Adapter Safety

A few rules for adapter use:

  • Buy quality. Cheap dog bones with thin contacts overheat under sustained load. Look for heavy-duty models with solid brass contacts.
  • Keep sustained load under 2,800 watts (24 amps) when using a 50-amp RV on a 30-amp connection. That leaves ~700 watts of headroom for startup surges.
  • Check for heat. After 30 minutes of use, touch the adapter and plug connections. Warm is normal. Hot means something is wrong.

Y-Adapters and Splitters: Avoid These

A standard dog bone adapter converts one plug type to another — one input, one output. That’s fine. But Amazon and RV supply sites also sell Y-adapters that combine or split connections, and these create real hazards that the product listings won’t tell you about.

50-amp splitters (one 50A plug to two 30A outlets) let two 30-amp RVs share a single 50-amp pedestal outlet. The problem: each 30-amp outlet on the splitter is protected only by the pedestal’s 50-amp breaker — not a 30-amp breaker. That means the 30-amp-rated wiring in your RV’s shore cord can carry up to 50 amps before anything trips. Overloaded wiring heats up silently, and since the neutral wire has no breaker protection at all, it can melt insulation and start a fire without ever tripping the breaker. One RV park owner documented a 40-foot motorhome that burned to the ground — the fire marshal concluded it was caused by an overloaded shore power system.

Dual 30-amp to 50-amp combiners (two 30A plugs into one 50A outlet) let a 50-amp RV draw power from two separate 30-amp pedestal outlets simultaneously. RV electrical safety expert Mike Sokol has written extensively about these. If one of the 30-amp outlets has reverse polarity — which is more common than you’d think — plugging in the Y-adapter creates a direct hot-to-neutral short circuit that can arc-flash violently enough to melt contacts and cause serious injury. Even without a wiring fault, if both outlets are on the same electrical leg, the neutral wire in your shore cord carries the combined current from both sides — potentially 60 amps through a conductor rated for 50.

Protecting Your RV: Surge Protection and EMS

The power pedestal is the last thing between your RV’s electronics and the campground’s wiring — and campground wiring isn’t always trustworthy. Miswired pedestals are more common than you’d think, and they can cause real damage.

What Can Go Wrong

  • Power surges and spikes — Lightning, grid fluctuations, and large loads cycling on and off nearby can send voltage spikes through the pedestal. Low-level surges happen multiple times a day and gradually degrade electronics.
  • Hot-skin condition — If the ground wire is interrupted, 120 volts can leak onto your RV’s metal frame and skin. Touch the RV while standing on wet ground and you complete the circuit. This is a life-threatening condition.
  • Open neutral — On a 50-amp connection, a broken neutral wire causes voltage to divide unevenly between the two legs. One side gets too much, the other too little. Appliances on the high side burn out.
  • Reverse polarity — Hot and neutral wires swapped at the pedestal. Most appliances still work, but the safety ground path is compromised.
  • Open ground — The ground wire is disconnected, eliminating the safety path that prevents electrocution during a fault.

Surge Protector vs. EMS

There are three tiers of protection:

Basic surge protector: Absorbs power spikes. That’s it. Doesn’t check for wiring faults, voltage problems, or ground issues.

Electrical Management System (EMS): The full package. Monitors voltage continuously, protects against surges and spikes, and detects open ground, open neutral, and reverse polarity. If it finds a problem, it disconnects power to your RV automatically before damage occurs.

Autoformer + surge protection: Boosts low voltage (common in older campgrounds during peak summer) and includes surge/spike protection. Doesn’t detect wiring faults like an EMS does.

How to Safely Connect to Shore Power

Every time you plug in, follow this sequence:

  1. Inspect the pedestal. Look for scorch marks, melted plastic, corrosion, or loose outlets. If something looks wrong, ask the campground to check it or move to a different site.
  2. Inspect your shore cord. Check for frayed insulation, bent prongs, or discolored connections. A damaged cord is a fire risk.
  3. Plug in your surge protector or EMS first. Let it run its diagnostic cycle. Most EMS units take 60–90 seconds to check voltage and wiring before they pass power through.
  4. Connect your shore cord to the EMS or surge protector.
  5. Turn on the pedestal breaker.
  6. Add load gradually. Turn on lights first, then the refrigerator, then wait a few minutes before starting the AC. Don’t fire up everything at once.

Know Your Rig, Carry the Right Gear

Shore power isn’t complicated, but it does demand a little attention. Know whether your RV is 30-amp or 50-amp. Carry the right adapter so you can plug in at any site. Use an EMS every single time. And before you start running appliances, know your limits — 3,600 watts on 30 amps, 12,000 watts on 50 amps.

Use the free Arvee AmpSmart calculator to check your specific load before you plug in. Select your shore power service level, add the appliances you plan to run, and see exactly how much headroom you have — or whether you need to make some choices about what stays off.
